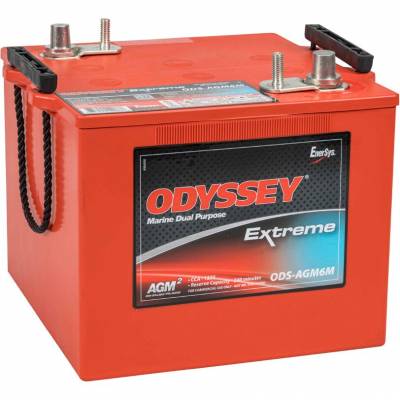

Product Specifications for Odyssey ODS-AGM6M Marine & Industrial Extreme Battery (PC2250)
| BM Part #: | PC2250-ST |
|---|---|
| Brand: | Odyssey |
| Battery Polarity: |
|
| Voltage: | 12 Volt |
| Cold Cranking Amps: | 1225 CCA |
| Capacity: | 126 Ah |
| Terminals: | SAE and 3/8-16" Stud |
| Type: | AGM |
| Battery Size: | Group 6TL |
| Length: | 11.3" |
| Width: | 10.6" |
| Height: | 8.2" |
| Terminal Height: | 9.2" |
| Shipping Weight: | 98.00Lbs |
| Warranty: | 2 Year (Warranty Info) |
| Datasheet: | Download |
Additional Specs:
- 1225 CCA, 1550 MCA, 1730 HCA
- 2250 Cranking Amps for 5 Seconds
- 240 Minute Reserve Capacity
- Cycle life @ 77°F 400 at 100% DOD
- -40°F to 140°F Temperature Range
- More Specs: (Adobe PDF)
Odyssey trademark is the property of Enersys and affiliates.
- This item is not eligible for free shipping.
-
Dual-Purpose Power
Combines massive 1225 CCA starting power with true deep cycle capability (400 cycles at 80% DOD). One battery does the work of two. -
Extreme Durability for Harsh Conditions
Built to withstand constant vibration, shock, and temperature extremes (-40°F to 113°F). Pure lead plate design outlasts conventional batteries 3x. -
Rapid Recovery & Recharge
Highest recharge efficiency of any sealed lead battery—fully recharge in just 4-6 hours. Get back on the water or job site faster. -
4-Year Warranty & 3-10 Year Service Life
Premium construction and materials mean fewer replacements, less downtime, and lower long-term costs. -
Non-Spillable AGM Design
Mount in any position (except inverted). DOT-certified non-spillable with no acid leaks or dangerous gases—ideal for marine and enclosed equipment. -
Superior Cold Weather Performance
Delivers 2-3x the cranking power of conventional batteries, even at -40°F. Reliable starts when you need them most. -
Extended Shelf Life
Store up to 2 years without recharging. Always ready when you need it. -
Maintenance-Free Operation
Sealed design means no water refills, ever. More time working, less time maintaining.
Product Description
Power Your Marine & Industrial Equipment with Confidence
The Odyssey ODS-AGM6M (formerly PC2250) delivers exceptional performance for demanding marine and industrial applications. Whether you're powering a commercial vessel, industrial equipment, or heavy machinery, this 12V 126Ah AGM battery provides the reliable starting power and deep cycle endurance you need to keep operations running smoothly.
Unlike conventional batteries that force you to choose between starting power or deep cycle capability, the ODS-AGM6M excels at both. Its pure lead-tin plate design delivers 1225 cold cranking amps for confident starts, while providing true deep cycle performance with up to 400 cycles at 80% depth of discharge. This dual-purpose design eliminates the need for multiple battery systems, saving space, weight, and cost.
Odyssey ODS-AGM6M Technical Specifications
Construction & Design
- Technology: Absorbed Glass Mat (AGM) pure lead-tin VRLA
- Terminals: Dual SAE automotive posts (tin-plated brass) and 3/8-16" stainless steel threaded stud
- Terminal Torque Spec: 100 in-lbs (11 Nm) maximum for stud terminals
- Internal Resistance: 2.1 mΩ
- Case Material: Oil-resistant plastic container and cover
- Mounting: Can be mounted in any position except inverted
- Handles: Integrated rope lifting handles for easy installation
- Condition: Shipped fully charged and ready to install
Charging Recommendations
For optimal battery life and performance, we recommend the Odyssey OBC-15A Charger (Item # OBC-15-A). This smart charger is specifically designed for Odyssey AGM batteries and prevents overcharging.
- Recommended Minimum Charging Current: 11.4A
- Recharge Time: 4-6 hours to 100% (under optimal conditions)
- Optimum Storage Temperature: 68°F (20°C)
Applications
The Odyssey ODS-AGM6M (PC2250) is ideal for:
- Commercial and recreational marine vessels
- Industrial equipment and machinery
- Heavy-duty commercial vehicles
- Construction equipment
- Emergency and backup power systems
- Applications requiring both high starting power and deep cycle capability
Why Choose Battery Mart for the Odyssey ODS-AGM6M?
- Lower price shown in cart
- In stock and ships quickly
- Expert technical support
- Genuine Odyssey battery with full manufacturer warranty
- Secure packaging to prevent shipping damage
Frequently Asked Questions
How long will the Odyssey PC2250 battery last?
A: When properly maintained, the PC2250 is built for long service life. It can handle hundreds of charge and discharge cycles, making it a reliable option compared to many standard batteries.
Is the PC2250 the same as the ODS-AGM6M?
A: Yes, the PC2250 and the ODS-AGM6M refer to the same battery. These are interchangeable model names with the same specifications and performance. If you need to replace a PC2250, the ODS-AGM6M is a direct replacement.
How quickly does the ODS-AGM6M recharge?
A: The ODS-AGM6M features the fastest recharge efficiency of any sealed lead battery on the market. You can achieve 100% recharge in just 4-6 hours, minimizing downtime and maximizing productivity. The 240-minute reserve capacity provides extended run time for power-hungry accessories and electronics.
How should I dispose of my Odyssey PC2250?
A: Never throw these batteries away in the trash. Lead-acid batteries are recyclable and can be taken to most auto parts stores, service shops, or recycling centers for proper disposal. You can also send them back to us, and we will take care of it for you.
Cross Reference & Compatibility
